Inclination And Slope
1.If a line L makes an angle \(\theta\) \((0^0\le\theta <180^0)\) with the positive direction of the \(X-axis\) then \(\theta\) is called inclination of L and \(\tan \theta\) is called the slope of the line L
The slope is generally denoted by m i.e \(m=\tan \theta\)
2. i) The slope of a horizontal line is zero
ii) The slope of the vertical line is not defined
3. i) The equation of \(x-axis\) is \(y=0\)
ii) The equation of the y-axis is \(x=0\)
iii) Equation of line parallel to the x-axis is \(y=k\)
iv) Equation of line parallel to y-axis is \(x=k\)
Slope Point Form

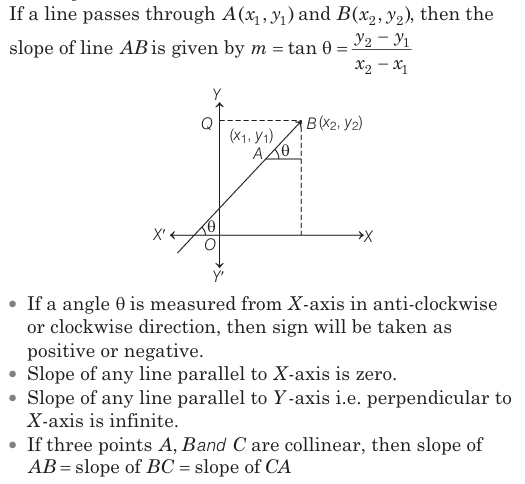

1 a) If \(A(x_1,y_1)\) and \(B(x_2,y_2)\) are two points. then the slope of \(\overline{AB}= \frac {y_2-y_1} {x_2--x_1}\)
b) The slope of the line \(ax+by+c=0\) is \(-\frac a b\)
2 a) If \(m_1,m_2\) are slopes of two parallel lines then \(m_1=m_2\)
b) If \(m_1,m_2\) are slopes of two perpendicular lines then \(m_1m_2=-1\Rightarrow m_2=-\frac {1} {m_1}\)
3 Slope point form:- The equation of a line passing through \((x_1,y_1)\) and having slope \('m'\) is \(y-y_1=m(x-x_1)\)
ii) The equation of a line passing through the origin and having slope 'm' is \(y=mx\)
4 Two points form:- The equation of the line passing through the points \((x_1,y_1)\) and \((x_2,y_2)\) is \(y-y_1=\frac {y_2-y_1} {x_2-x_1} (x-x_1)\)
Slope Intercept Form

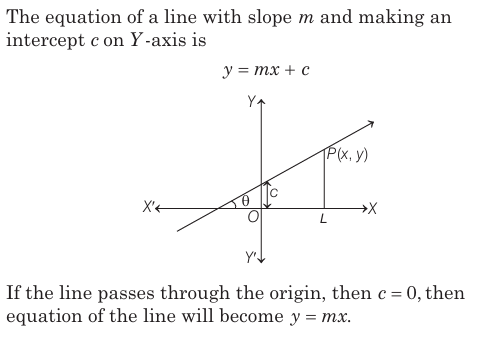

1 Slope intercept form:-
i) The equation of the line with slope 'm' and y-intercept 'c' is \(y=mx+c\)
ii) The equation of the line with slope 'm' and x-intercept 'a' is \(y= m(x-a)\)
2 Intercept form
The equation of a line having 'a','b' as intercepts are \(\frac {x} {a}+\frac{y} {b}=1\)
3 Normal form
The equation of a line in the normal form is \(x \cos \alpha+y\sin \alpha =p\)
4 symmetric form
The equation of a line passing through \((x_1,y_1)\) and having inclination \(\theta\) is
\(\frac {x-x_1} {\cos \theta}=\frac {y-y_1} {\sin \theta}\)
Parametric Form
1 Parametric form:-
The parametric equations of the line are \(x=x_1\pm r \cos \theta\) & \(y=y_1\pm r \sin \theta\)
2 (a) The perpendicular distance from the origin to the line \(ax+by+c=0\) is \(\frac {|c|} {\sqrt{a^2+b^2}}\)
(b)The perpendicular distance from \(P(x_1,y_1)\) to the line \(ax+by+c=0\) is
\(\frac {|ax_1+by_1+c|} {\sqrt{a^2+b^2}}\)
3 The distance between the parallel lines \(ax+by+c_1=0\) and \(ax+by+c_2=0\) is \(\frac {|c_1-c_2|}{\sqrt{a^2+b^2}}\)
4) (a) Area of the triangle formed by the line \(\frac {x} {a}+\frac {y} {b}=1\) with co-ordinate axes are \(\frac 1 2|ab|\)
(b) The area of the triangle formed by the line \(ax+by+c=0\) with co-ordinate axes are \(\frac {c^2} {2|ab|}\)
Area Of Triangle
1 a) Area of the triangle formed by the line \(\frac {x} {a}+\frac {y} {b}=1 \) with coordinate axes is \(\frac 1 2 |ab|\)
b) The area of a triangle formed by the line ax+by+c with co-ordinate axes is \(\frac {c^2} {2|ab|}\)
2 a) The x-axis divides \(\overline{AB}\) in the ratio \(-y_1:y_2\)
b) The y-axis divides \(\overline{AB}\) in the ratio \(-x_1:x_2\)
3 i ) The ratio in which the line \(L\equiv ax+by+c=0\) divides the line segment joining \(A(x_1,y_1),B(x_2,y_2)\) is \(-L_{11}:L_{22}\) where \(L_{11}\equiv ax_1+by_1+c=0\),\(L_{22}\equiv ax_2+by_2+c=0\)
ii) The points A,B lie on the same side or opposite side of the line \(L=0\) according \(L_{11},L_{22}\) have the same sign or opposite signs
Slope Of Two Lines
1 If \(m_1,m_2\) are slopes of two lines and the angle between two lines is \(\theta\) then
\(\tan \theta = \Big| \frac {m_1-m_2} {1+m_1m_2}\Big|\)
2 If \(\theta\) is acute angle between the lines \(a_1x+b_1y+c_1=0\) and \(a_2x+b_2y+c_2=0\) then
\(\tan \theta=\Big|\frac {a_1b_2-a_2b_1} {a_1a_2+b_1b_2}\Big|\)
3 a) The equation of the line parallel to \(ax+by+c=0\) is \(ax+by+k=0\)
b) The equation of the line passing through \((x_1,y_1)\) and parallel to \(ax+by+c=0 \) is \(a(x-x_1) +b(y-y_1)=0\)
c) The equation of the line perpendicular to \(ax+by+c=0\) is \(b(x-x_1) -a(y-y_1)=0\)
